10.1 Inch Medical TN TFT LCD Display 1024×600 Resolution Module

Name: 101 Inch Medical TN TFT LCD Display 1024600 Resolution Module
Brand: Jingtai
Price: 1 USD

Buy cheap 10.1 Inch Medical TN TFT LCD Display 1024×600 Resolution Module product

Packaging Details : Standard Exportation Package

Price : 1-20

Delivery Time : 1-5 weeks

CTP Interface : 12C/USB

Interface Definition : MIPI

Payment Terms : T/T,,L/C,MoneyGram,D/A,D/P

CTP Structure : GFF/GG

Resolution : 1024*600

Brand Name : Jingtai

MOQ : 5pcs

Viewing Angle : 60/70/80/80

Supply Ability : 2000K Pcs Per Month

Luminance : 250 cd/m²(Typ) 500 cd/m²(Typ) 800 cd/m²(Typ) 1000 cd/m²(Typ)

Place of Origin : Shenzhen/China

Model Number : JT-10.1TNWSM

Key Words : 10.1 Inch TN WS

Certification : ISO9001 / ISO14000

Touch Screen : CTP

Contact Now

10.1 Inch Medical TN TFT LCD Display 1024×600 Resolution Module

Technical Specifications

This 10.1 inch TN TFT LCD module features a resolution of 1024×600, MIPI interface, and normally white display mode. It is designed for medical devices and diagnostic equipment where accurate and reliable display is critical. The module supports a wide operating temperature range of -30°C to +80°C, making it suitable for various healthcare environments. The compact design ensures easy integration into medical devices, including patient monitoring systems and diagnostic instruments.

Performance

The TN panel offers fast response times, ensuring that critical information is displayed in real time. High brightness options provide clear readability even in well-lit hospital rooms and laboratory settings. The module has a stable contrast ratio and reliable signal transmission via the MIPI interface, ensuring consistent performance. Its industrial-grade components and rigorous quality control make it highly reliable for continuous medical use.

Applications

This medical TFT LCD module is suitable for a variety of healthcare equipment, including hospital patient monitoring systems, medical diagnostic displays, clinical laboratory instruments, and portable medical devices. It can also be used in embedded medical control systems, medical imaging devices, and other healthcare equipment requiring stable and accurate display performance. Its versatility makes it an ideal solution for both fixed and portable medical applications.

Key Benefits

Provides stable and reliable display performance for medical applications
Fast response TN technology ensures timely display of critical information
High brightness and contrast improve readability under various lighting conditions
Wide operating temperature range ensures consistent performance in medical environments

Product Specifications

Number Of Pixels	1024*600pixels
Active Area	222.72*125.28mm
Module Outline	2351435.1mm
Aspect Ratio	16:9
Display Model	Normally White
Viewing Angle(CR>10)	60/70/80/80
Contrast Ratio	500(Min) 600(Typ)
NTSC	50%TYP
LCM Brightness	250 cd/m²(Typ) 500 cd/m²(Typ) 800 cd/m²(Typ) 1000 cd/m²(Typ)
Interface	MIPI
Operating Temperature	-20~+70℃
Storage Temperature	-30~+80℃

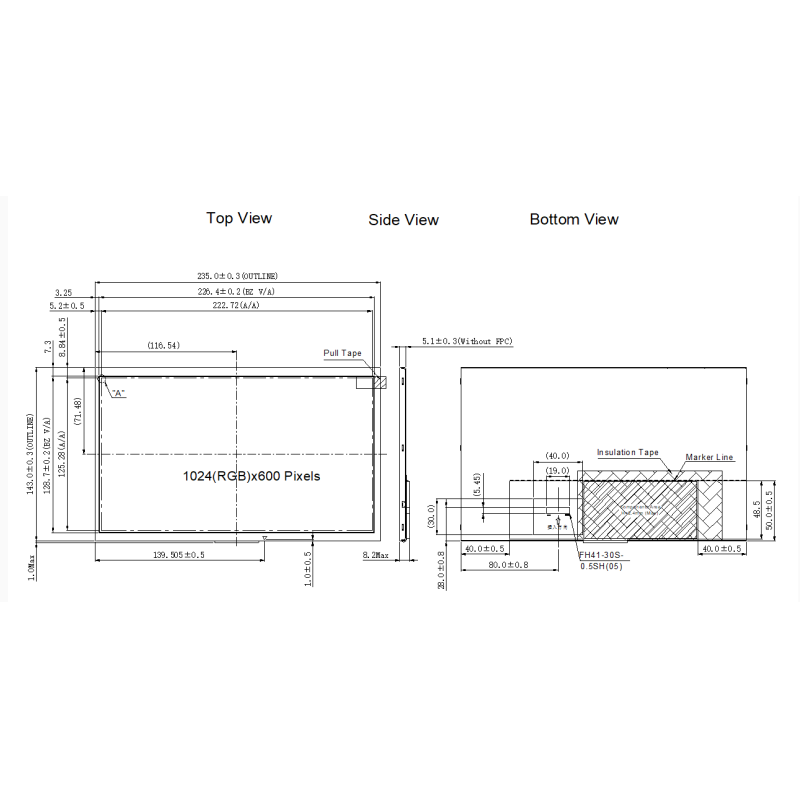

10.1 Inch Medical TN TFT LCD Display Drawing
